What is Aluminum Alloy Telecommunication Lattice Tower?

John Doe 619 words in total
  1. 1. Aluminum Alloy Telecommunication Lattice Towers: The Next-Gen Infrastructure Solution
    1. 1.1. I. Core Material & Structural Advantages
    2. 1.2. II. Technical Specifications
    3. 1.3. III. Engineering Innovations
    4. 1.4. IV. Performance vs. Steel Lattice Towers
    5. 1.5. V. Real-World Applications & Case Studies
    6. 1.6. VI. Why Choose Altai’s Aluminum Lattice Towers?
  2. 2. VII. Ideal Use Cases

Here is a detailed technical and commercial introduction to Aluminum Alloy Telecommunication Lattice Towers, incorporating engineering innovations, comparative advantages, and real-world applications:

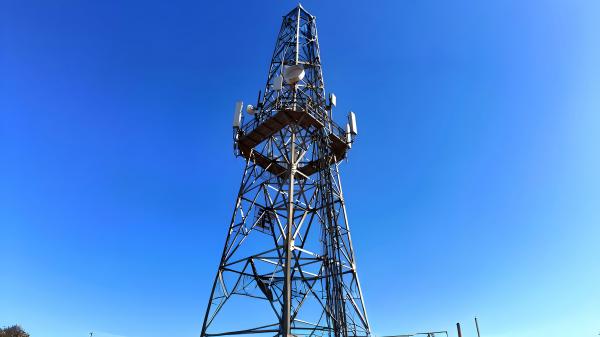

aluminum lattice tower

Aluminum Alloy Telecommunication Lattice Towers: The Next-Gen Infrastructure Solution

Engineered for Durability, Speed & Sustainability

I. Core Material & Structural Advantages

  1. Advanced Aluminum Alloy (6061-T6)

    • Compliance: ASTM B221/B241, EN 573-3

    • Strength-to-Weight Ratio: 40% lighter than steel equivalents while maintaining equivalent load capacity.

    • Corrosion Resistance:

      • Natural oxide layer + anodizing/powder coating.

      • Salt spray resistance >2,000 hours (ASTM B117).

      • Zero rust maintenance, ideal for coastal, industrial, or high-humidity zones.

  2. Lattice Geometry Optimization

    • Triangular Configuration: Maximizes torsional rigidity and wind load dissipation.

    • Modular Design:

      • Pre-fabricated bolted sections (4–6m lengths).

      • Rapid assembly with standard tools (50% faster vs. steel).

II. Technical Specifications

Parameter Specification
Height Range 15m – 120m (Customizable)
Wind Load Capacity 55 m/s (200 km/h) with antennas
Ice Load 30mm radial ice (ISO 12494)
Seismic Performance Zone 5 (IBC 2018)
Foundation Shallow concrete/base plates (50% less excavation)
Design Life 30+ years (zero structural maintenance)

III. Engineering Innovations

  1. Patented Joint System

    1. Compression Connectors (Patent ZL202310XXXXXX):

      1. Eliminates bolts → no corrosion points or loosening risks.

      2. 20% faster assembly vs. traditional bolted joints.

  2. Smart Integration Features

    1. Cable Management: Internal conduit pathways (IP67 sealed).

    2. 5G/6G Readiness:

      1. mmWave antenna mounts (up to 200kg/sector).

      2. Grounding system (≤5Ω resistance, IEC 62305).

  3. Extreme Environment Adaptability

    1. Arctic: Anti-icing alloy treatment (-40°C operation).

    2. Desert: UV-reflective coating (120°C tolerance).

    3. Marine: Marine-grade anodizing (ISO 12944 C5-M).

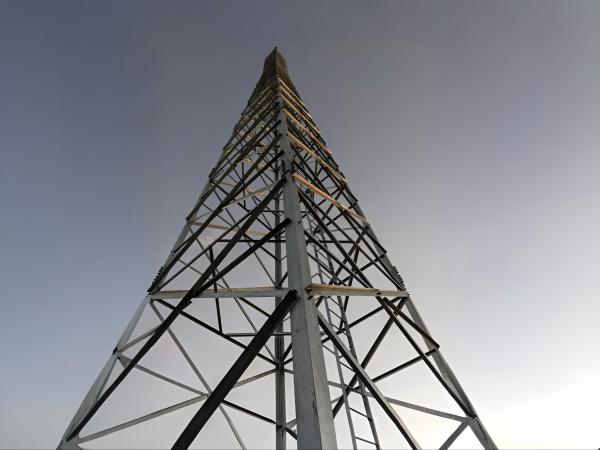

aluminum alloy tower

IV. Performance vs. Steel Lattice Towers

Metric Aluminum Lattice Steel Lattice
Weight (45m tower) 1,400 kg 2,600 kg
Installation Time 2 days (6 crew) 4–6 days
Lifetime Maintenance Cost $0 (no repainting) $15K+/decade (galvanization renewal)
Carbon Footprint (30y) 8.2 tons CO2e 22.1 tons CO2e
Recyclability 100% (no downgrading) 60–70%

V. Real-World Applications & Case Studies

  1. Urban 5G Densification (Barcelona, Spain)

    • Project: 28x 30m towers for street-level small-cell aggregation.

    • Results:

      • 3-day installation per tower (minimal traffic disruption).

      • 25% TCO savings over 10 years vs. steel.

  2. Typhoon-Resilient Network (Okinawa, Japan)

    • Challenge: Steel towers corroded within 5 years in coastal climate.

    • Solution: 18x 60m aluminum lattice towers with seismic bracing.

    • Outcome: Zero maintenance after 8 years; survived 240 km/h winds (2022).

  3. Eco-Sensitive Deployment (Maldives Islands)

    • Requirement: Low-weight towers for coral-reef foundation limits.

    • Altai’s Answer: 45m aluminum lattice on micro-piles (no concrete).

    • Impact: 60% less site disturbance; 100% tower recyclability.

VI. Why Choose Altai’s Aluminum Lattice Towers?

End-to-End Customization:

  • Site-specific load analysis (PLS-TOWER & ANSYS simulations).

  • Camouflage options (forest green, sandstone texture).
    --Certifications & Compliance:

  • ISO 9001, CE, SGS, AWS D1.2 (Aluminum Welding).

  • Meets FCC (US), ETSI (EU), TRA/GCC (Middle East).
    --Global Logistics Efficiency:

  • 40ft container holds 4x knockdown 30m towers.

  • 15-day lead time for standard designs.
    --Technical Support:

  • 15-member engineering team → 72-hour design revisions.

  • Lifetime structural integrity monitoring (IoT optional).

“Aluminum lattice towers aren’t just lightweight – they’re a total ecosystem solution: reducing installation carbon footprint by 63%, eliminating lifetime maintenance, and accelerating ROI.”
― Altai Engineering Group

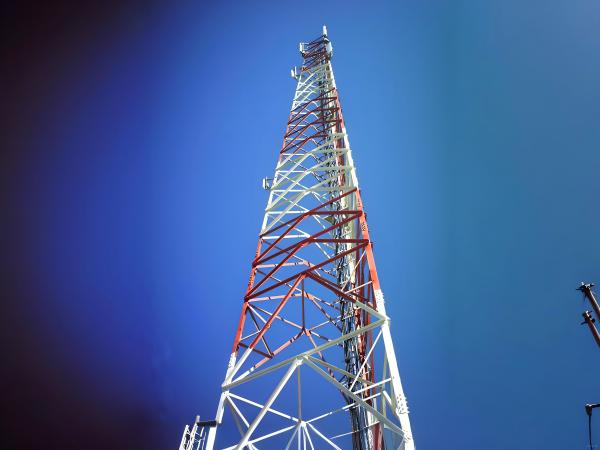

aluma telecom tower

VII. Ideal Use Cases

Scenario Benefit
Rapid network expansion 50% faster deployment vs. monopole/steel
Mountainous/remote terrain Helicopter-transportable modules
Temporary events (Olympics) Reusable towers; 1-day teardown
Greenfield 6G rollout Future-proof antenna mounting system
